MIW5021/MIW5023/MIW5032
MINMAX
MIW5021/MIW5023/MIW5032
FEATURES
►High Efficiency up to 88%
►1500VDC Isolation
►MTBF > 1,000,000 Hours
►2:1 Wide Input Range
►CSA60950-1 Safety Approval
►Over Voltage Protection
►Industry Standard Pinout
►UL 94V-0 Package Material
►Internal SMD Construction
►3 Years Product Warranty
PRODUCT OVERVIEW

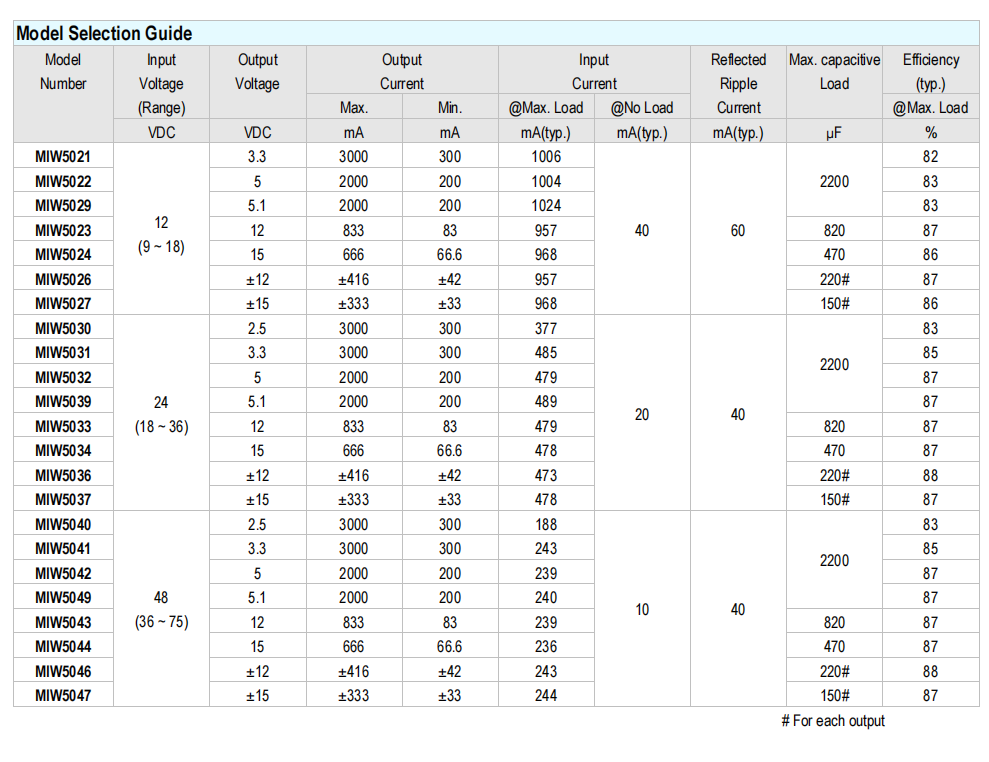

Minmax's MIW5000-Series power modules operate over input voltage ranges of 9-18VDC, 18-36VDC and 36-75VDC which provide precisely regulated output voltages of 2.5V, 3.3V, 5V, 5.1V, 12V, 15V, ±12V and ±15VDC. The MIW5000 series is an excellent selection for data communication equipments, mobile battery driven equipments, distributed power systems, telecommunication equipments, mixed analog/digital subsystems, process/machine control equipments, computer peripheral systems and industrial robot systems. The modules have a maximum power rating of 10W and a typical full-load efficiency of 88%, continuous short circuit, 50mA output ripple.
FEATURES
►High Efficiency up to 88%
►1500VDC Isolation
►MTBF > 1,000,000 Hours
►2:1 Wide Input Range
►CSA60950-1 Safety Approval
►Over Voltage Protection
►Industry Standard Pinout
►UL 94V-0 Package Material
►Internal SMD Construction
►3 Years Product Warranty
PRODUCT OVERVIEW
Minmax's MIW5000-Series power modules operate over input voltage ranges of 9-18VDC, 18-36VDC and 36-75VDC which provide precisely regulated output voltages of 2.5V, 3.3V, 5V, 5.1V, 12V, 15V, ±12V and ±15VDC. The MIW5000 series is an excellent selection for data communication equipments, mobile battery driven equipments, distributed power systems, telecommunication equipments, mixed analog/digital subsystems, process/machine control equipments, computer peripheral systems and industrial robot systems. The modules have a maximum power rating of 10W and a typical full-load efficiency of 88%, continuous short circuit, 50mA output ripple.
