MDWI03-24S033
MINMAX
MDWI03-24S033
FEATURES
►Compact DIP-16 Package
►Ultra-wide 4:1 Input Voltage Range
►Fully Regulated Output Voltage
►I/O Isolation 1500 VDC
►Operating Ambient Temp. Range -40℃ to +85℃
►Under-voltage, Overload and Short Circuit Protection
►Remote On/Off Control
►UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval
PRODUCT OVERVIEW

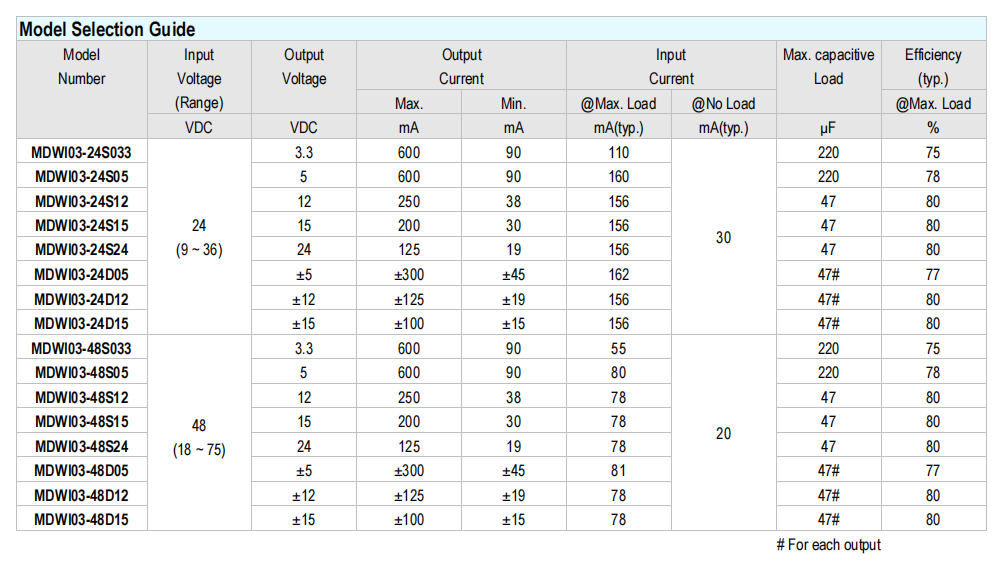

Minmax‘s MDWI03 series power modules are in mini-DIP DC-DC converters that operate over input voltage ranges of 9-36VDC and 18-75VDC which provide precisely regulated output voltages of 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V and ±15VDC. Pin compatible with the MDW1000 series, the MDWI03 offers a power rating up to 3W and a typical full-load efficiency of 80%, under-voltage, over load, short circuit protection and remote on/off control. The MDWI03 series is an excellent selection for data communication equipment, mobile battery driven equipment, distributed power system, telecommunication equipment, mixed analog/digital subsystem, process/machine control equipment, computer peripheral equipment and industrial robot systems.
FEATURES
►Compact DIP-16 Package
►Ultra-wide 4:1 Input Voltage Range
►Fully Regulated Output Voltage
►I/O Isolation 1500 VDC
►Operating Ambient Temp. Range -40℃ to +85℃
►Under-voltage, Overload and Short Circuit Protection
►Remote On/Off Control
►UL/cUL/IEC/EN 62368-1(60950-1) Safety Approval
PRODUCT OVERVIEW
Minmax‘s MDWI03 series power modules are in mini-DIP DC-DC converters that operate over input voltage ranges of 9-36VDC and 18-75VDC which provide precisely regulated output voltages of 3.3V, 5V, 12V, 15V, 24V, ±5V, ±12V and ±15VDC. Pin compatible with the MDW1000 series, the MDWI03 offers a power rating up to 3W and a typical full-load efficiency of 80%, under-voltage, over load, short circuit protection and remote on/off control. The MDWI03 series is an excellent selection for data communication equipment, mobile battery driven equipment, distributed power system, telecommunication equipment, mixed analog/digital subsystem, process/machine control equipment, computer peripheral equipment and industrial robot systems.
