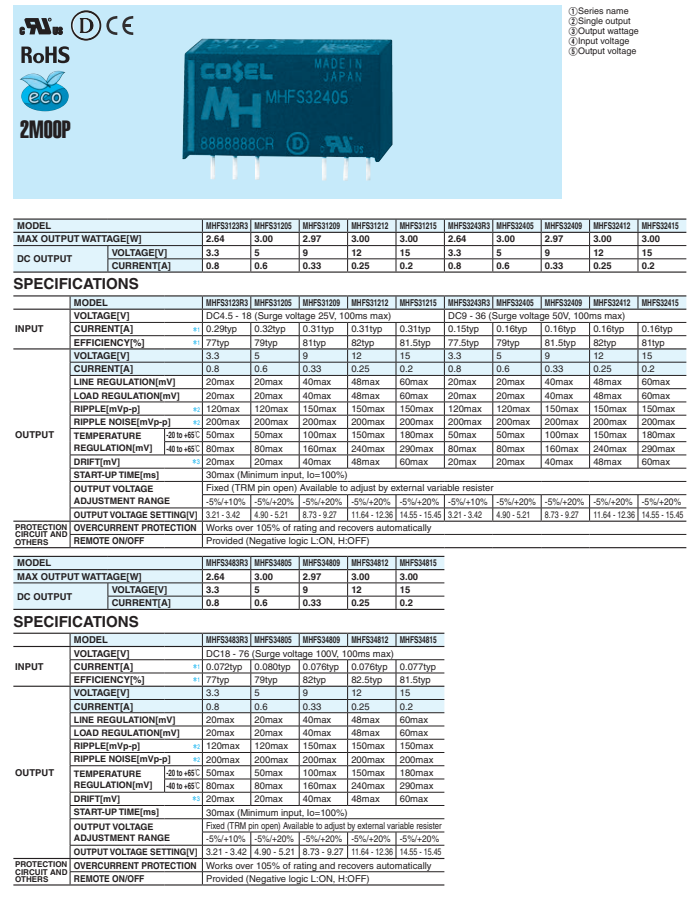

*1 Single output +24V, +30V with no use of COM. *2 Rated input 12V or 24V or 48V DC Io=100% *3 Symmetrical loading from 20% to 100%. *4 Symmetrical loading from 0% to 100%. *5 Ripple and Ripple Noise is measured by using test board with ceramic capacitor 0.1 F at 50mm from output pins. *6 Drift is the DC output accuracy for eight hours period after a half-hour warm-up at 25C. * Parallel operation with other model is not possible.
