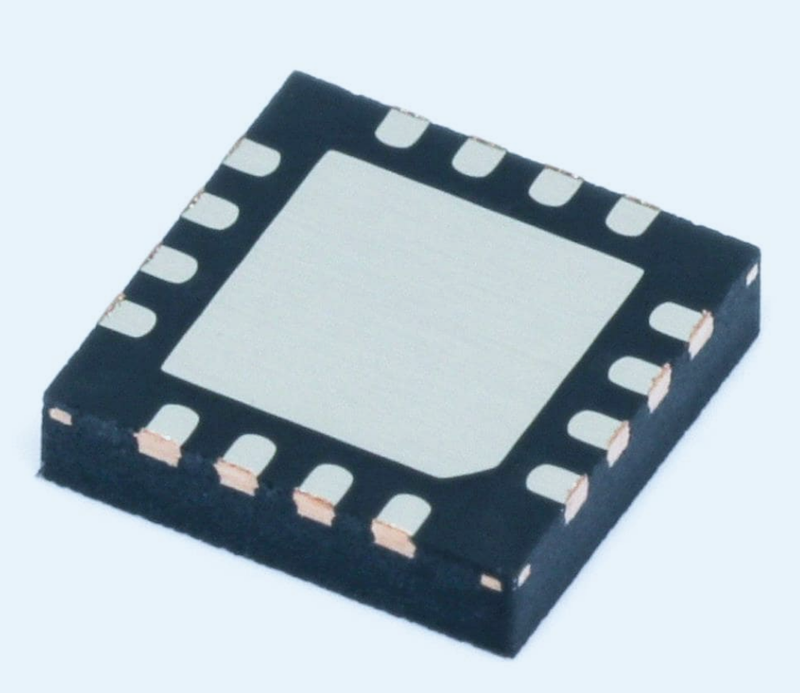

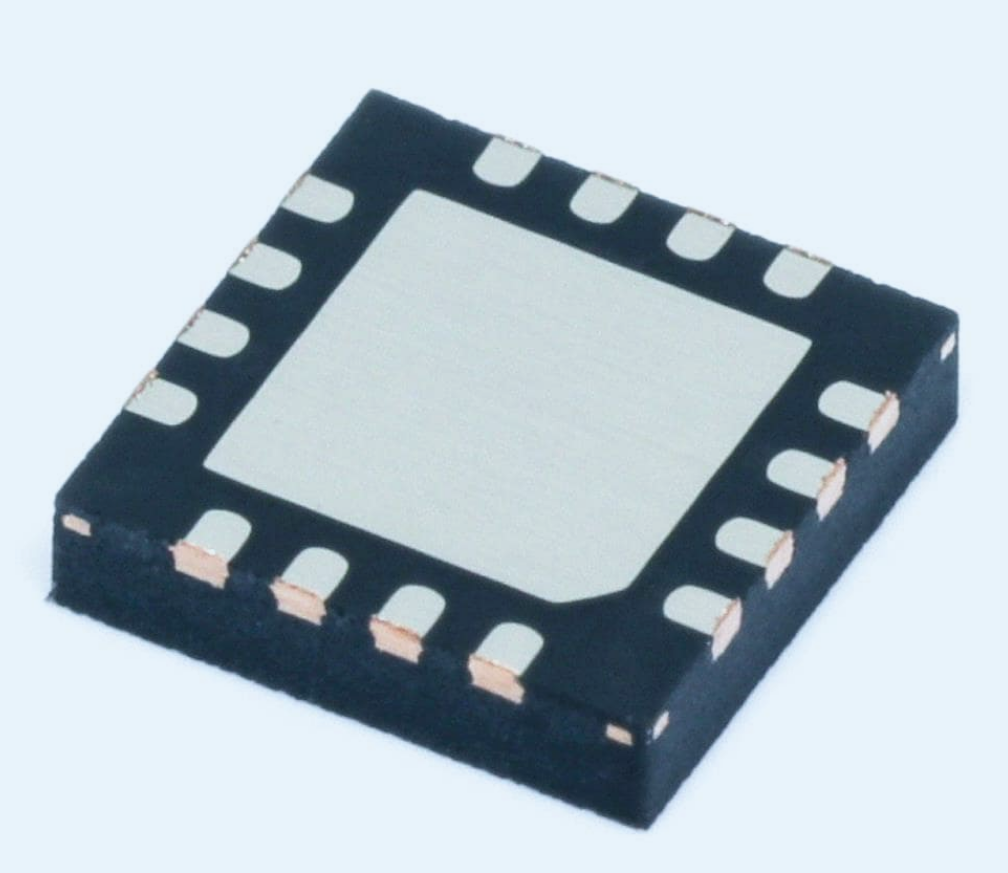

ADI-ADL5562ACPZ

FEATURES
−3 dB bandwidth of 2.9 GHz (AV = 6 dB)
Low supply current: 40 mA
Pin-strappable gain adjust: 6 dB, 12 dB, 15.5 dB
Differential or single-ended input to differential output
Low noise input stage: 2.1 nV/√Hz RTI at AV = 12 dB
Low broadband distortion (AV = 6 dB)
10 MHz: −94 dBc HD2, −87 dBc HD3
70 MHz: −98 dBc HD2, −87 dBc HD3
140 MHz: −95 dBc HD2, −87 dBc HD3
250 MHz: −80 dBc HD2, −73 dBc HD3
IMD3s of −86 dBc at 250 MHz center
Slew rate: 9.8 V/ns
Fast settling of 2 ns and overdrive recovery of 3 ns
Single-supply operation: 3 V to 3.6 V
Power-down control
Fabricated using the high speed XFCB3 SiGe process

APPLICATIONS
Differential ADC drivers
Single-ended-to-differential conversion
RF/IF gain blocks
SAW filter interfacing
